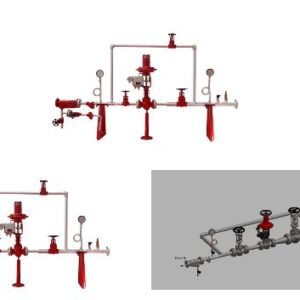

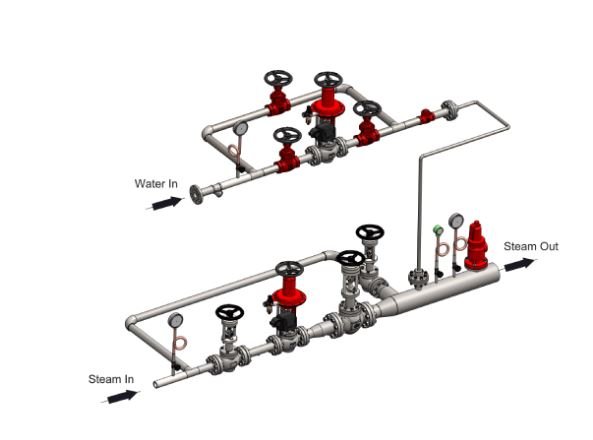

PRESSURE REDUCING & DESUPERHEATING STATION (PRDS)
DESCRIPTION
- Series: PRDS
- Size : Inlet – ½” to 20”; Outlet – ½” & above
- Rating: ANSI 150# to 1500#
- Design Code: ASME B31.1 & ASME B31.3
FEATURES
- Suitable for both intermittent & continuous operation.
- PID control loop ensures high accuracy and fast recovery from disturbance in downstream pressure as well as temperature.
- Control valve as well as Desuperheater stellited or nitrided for higher service life
- Operates even on low flow conditions.
- Maintenance free and user friendly.
BENEFITS
- UNIFLOW make of Globe Control Valve as well as Desuperheater which ensures quality assurance along with required customizations.
- Multiple options available for Control Valve seat design for any temperature & MOC
- All internal parts, approachable from bonnet side, provides easy access for on-line inspection, maintenance, and trim replacement without requiring recalibration when assembled again.
- Bolts located outside of the piping stress area to eliminate gasket crush problems, reducing down-time.
- Zero gland leakage
APPLICATIONS
- Combined Heat and Power (CHP) Plants
- Industrial Process Heating & Cooling
- Chemical & Petrochemical
- Paper & Pulp
- Steam for Sterilization and Pasteurization
- HVAC (Heating, Ventilation, and Air Conditioning)
