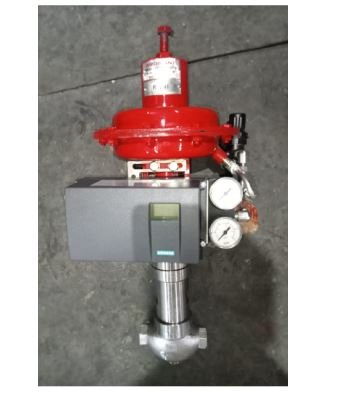

2212-Miniature (Pilot) Control Valve
DESCRIPTION
- Series: 2212
- Size :¼” (6 mm), ½” (15 mm) & ¾” (20 mm)
- Standards :ASME B16.34
- Rating:ANSI 150# to 300# & equivalent
FEATURES
- Glandless construction
- Wide range of interchangeable trims
- Threaded Bonnet for quick assembly
- Bar stock bodies in exotic material
- Cooling finned bonnet available for higher temp.
- Extended Bonnet available for Cryogenic Application
BENEFITS
- Wide range of body sizes and trim sizes available to satisfy varied flow requirements
- Tight sensitively and stability of controlled pressure
- Compact Size
APPLICATIONS
- Widely used for research and process pilot plant on liquids, gases or steam to control
fractional flows in smaller pipes. - Its compact size makes it an ideal choice for additional injection, sampling or low flow
Hydraulic system. - Suitable for corrosive atmosphere
