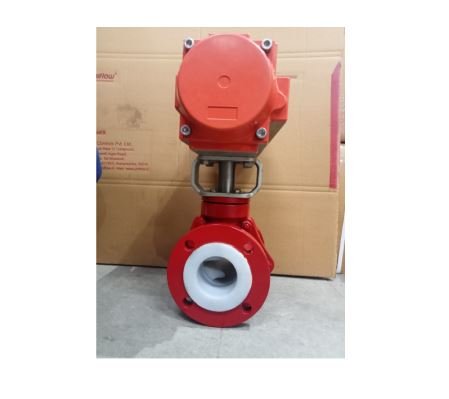

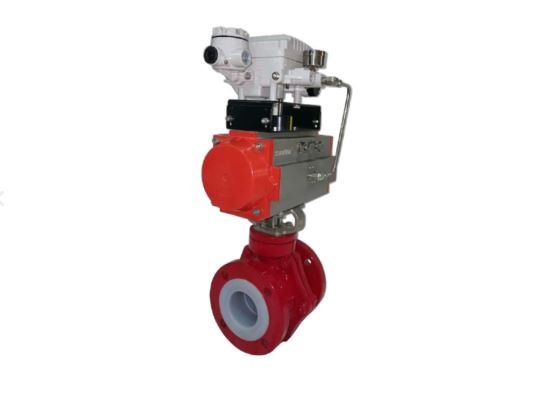

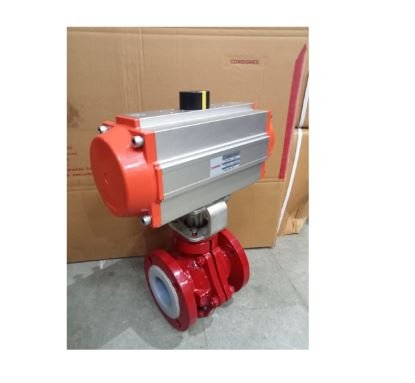

6201 PFA Lined Ball Valve
DESCRIPTION
- Series: 6201
- Size :1” (25 mm) to 6” (150 mm)
- Standards :ASME B16.34, ANSI/FCI-70-2
- Rating:ANSI 150# & Equivalent (Higher Rating on request)
FEATURES
- Offers both reduced port & full port design
- Has floating ball design for reduced port and ball & stem integral design for full port ball
valves - Offers chevron packings (sintered packings) for both reduced port & full port valves & valves
are subjected to helium leak test in case if the same is required - Lining is anchored with dove tail groove and makes its valve suitable for both pressure &
vacuum applications. - Offers all metal components in investment casting, ensuring intact & homogeneous lining &
having an overall, even thickness of lining of intricate contours - Valves are all with ISO mounting pad design, enables mounting if actuators very easy
- Lining of all valves by latest injection molding process and not by transfer molding process
makes its lining more compact & reliable - Provides all lining materials for corrosive applications such as PFA, ETFE, PVDF
BENEFITS
- Standard body casting material is ASTM A 216 GR. WCB & upon requirement can also provide ASTM A 351 GR. CF8M.
APPLICATIONS
- Textile industries application
- Shut-off applications
- Preferred valve for pharmaceutical industries
